Flo-Tank® Modular Tank System
The Flo-Tank® is a structural lightweight modular tank system used to
construct underground water storage for various applications. The
modular nature of the system allows for the easy construction of
tanks of any volume and can be designed to accommodate specific site
conditions.
Applications:
- Infiltration / Absorption Tanks
- Rainwater Harvesting Tanks
- Stormwater Detention / Attenuation Tanks / O.S.D Onsite Detention
- Underground Stormwater Channels
- Underground Drainage
- Lightweight Structural Fill
|
|
Total Stormwater Management
Modular tank systems use surface and underground infiltration techniques, resulting
in clean water that can be re-used or allowed to re-enter the natural water system.
Modular tank systems offer a highly efficient option for stormwater management
in any kind of soil.
Water Quality
Modular tank systems excel when there is a requirement to achieve high water quality,
particularly in the effective removal of nutrients and gross pollutants. In addition
to the obvious environmental benefits, the sub -surface location of the tank
system provides more useable ground area and enhanced aesthetic setting compared
to above ground concrete or plastic tanks.
The Modular Advantage
Modular tank system performance supersedes outdated aggregate trenches. The system
provides a void space of over 90% compared to less than 20% in typical aggregate
trenches. Consequently, with a smaller footprint the system achieves the same
storage capacity as an aggregate trench. This saves time and money in installation

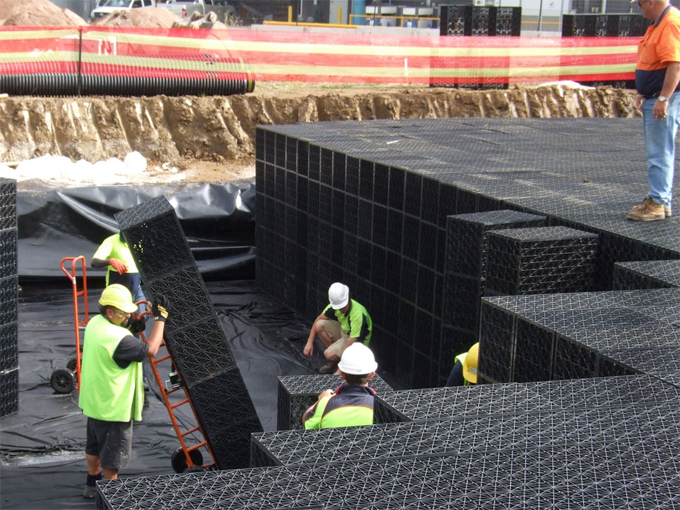

and civil works costs. The lightweight design of modular tank modules also make
installation quicker, safer and cheaper. No sediment build up occurs in the system,
unlike the clogging that is characteristic of aggregate based approaches.

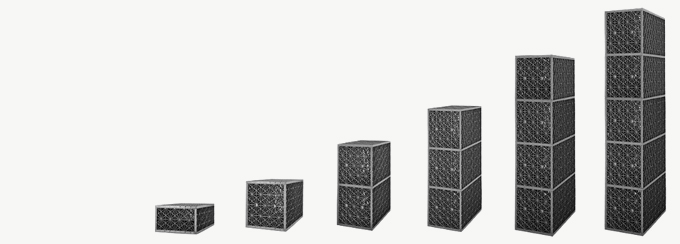

Flo-Tank® Specifications
|
|
MODEL
|
MINI
|
SINGLE
|
DOUBLE
|
TRIPLE
|
QUAD
|
PENTA
|
| PART NUMBER |
70010 |
70003 |
70004 |
70005 |
70006 |
70007 |
| HEIGHT* (mm) |
240 |
450 |
880 |
1310 |
1740 |
2170 |
| GROSS VOLUME (L) |
67 |
126 |
246 |
366 |
486 |
607 |
| CAPACITY (L) |
63.72 |
119.48 |
233.65 |
347.81 |
461.98 |
576.15 |
| PART WEIGHT (kg) |
4.00 |
7.28 |
16.46 |
19.64 |
25.82 |
32.00 |
| MAX FLOW (L/sec) |
5.9 |
11.5 |
11.5 x 2 |
11.5 x 3 |
11.5 x 4 |
11.5 x 5 |
*Length x Width: 685 x 408mm
|
