Flo-Channel®

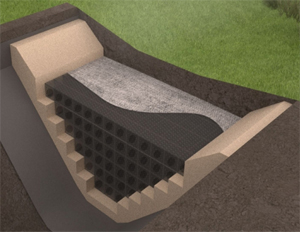

The Flo-Channel® is a structural lightweight modular tank system used
to construct underground pipe lines for channeling water.
The modular nature of the system allows for the easy construction of
channels of any volume. The versatile modules can be designed to
accommodate specific site conditions.
Applications:
- Underground Stormwater Channels
- Drainage
|
|
Total Stormwater Management
Modular channel systems use absorption and infiltration methods to channel and clean
water that can be re-used or allowed to re-enter the natural water system. Modular
tank systems offer a highly efficient option for stormwater management in any
kind of soil.
Water Quality
Modular tank systems excel when there is a requirement to achieve high water quality,
particularly in the effective removal of nutrients and gross pollutants. In addition
to the obvious environmental benefits, the sub -surface location of the tank
system provides more useable ground area and enhanced aesthetic setting compared
to above ground concrete or plastic tanks.
The Modular Advantage
Modular tank system performance supersedes outdated aggregate trenches. The system
provides a void space of over 90% compared to less than 20% in typical aggregate
trenches. Consequently, with a smaller footprint the system achieves the same
storage capacity as an aggregate trench. This saves time and money in installation
and civil works costs. The lightweight design of modular tank modules also make
installation quicker, safer and cheaper. No sediment build up occurs in the system,
unlike the clogging that is characteristic of aggregate based approaches.
Flo-Channel® Specifications
|
|

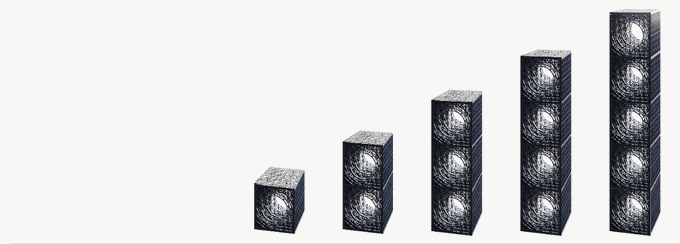

MODEL
|
SINGLE
|
DOUBLE
|
TRIPLE
|
QUAD
|
PENTA
|
| PART NUMBER |
70003FC |
70004FC |
70005FC |
70006FC |
70007FC |
| HEIGHT* (mm) |
450 |
880 |
1310 |
1740 |
2170 |
| GROSS VOLUME (L) |
126 |
246 |
366 |
486 |
607 |
| CAPACITY (L) |
119.48 |
233.65 |
347.81 |
461.98 |
576.15 |
| PART WEIGHT (kg) |
7.6 |
14.1 |
20.6 |
27.1 |
33.6 |
| MAX FLOW (L/sec) |
28.5 |
28.5 |
28.5 |
28.5 |
28.5 |
*Length x Width: 685 x 408mm
|
